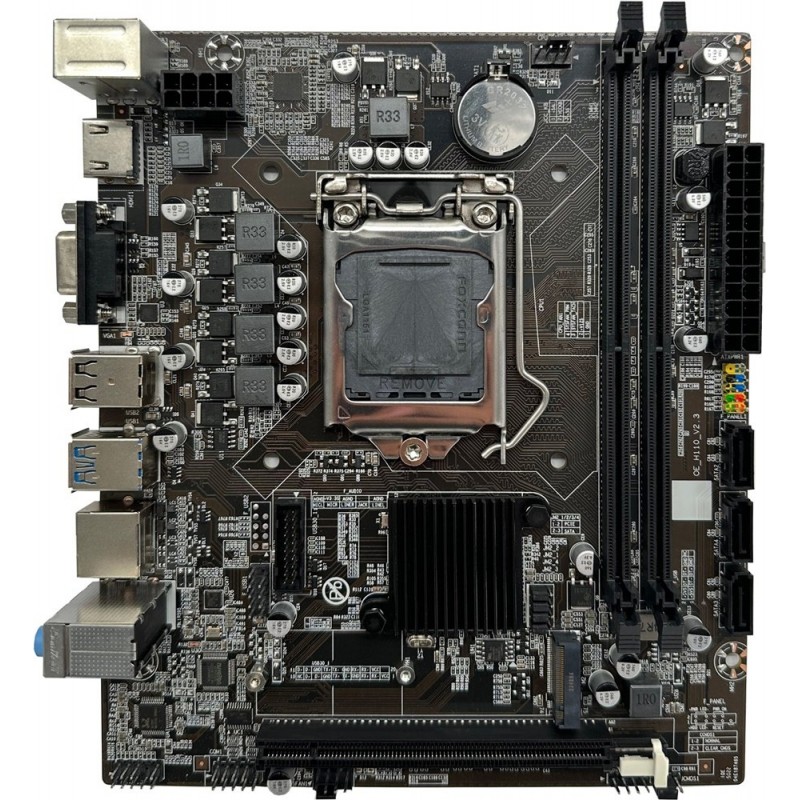

CARTE MERE ARKTEK AKH110M Pro-VD PLUS LGA
- Marque : ARKTEK
- Référence : AKH110M Pro-VD

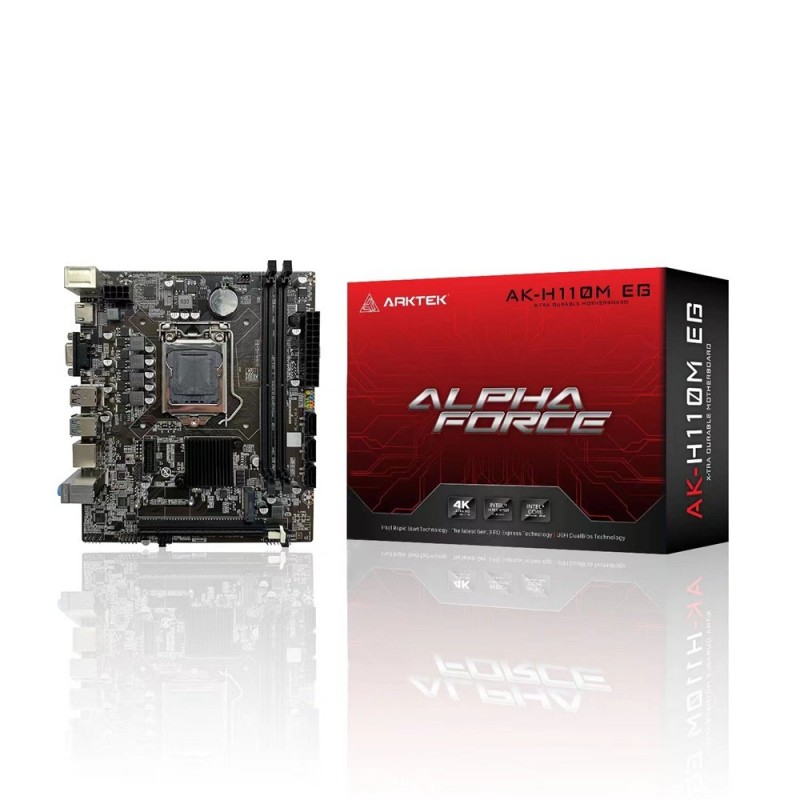

+ Model: AK-H110M EG
+ Socket: LGA1151
+ Chipset: Intel H110
+ Memory Support: Dual Channel DDR4
Overview
- CPU Support: Intel® Socket 1151 for 6th/7th/8TH/9TH Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU
- Chipset: Intel H110 Chipset
- On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
- Memory:DDR4 2400/2666/3000MHz Memory Max. up to 32GB each
- DIMM: 2 x Memory Slots
- LAN: On board Realtek® RTL8105E 10/100 Mbps adaptive network card interface
- Audio: Chip integrated by Realtek 661 on board, Supports 6-channel audio-out
- SATA: 3x SATA, 1xM.2 supports PCIE+SATA mode

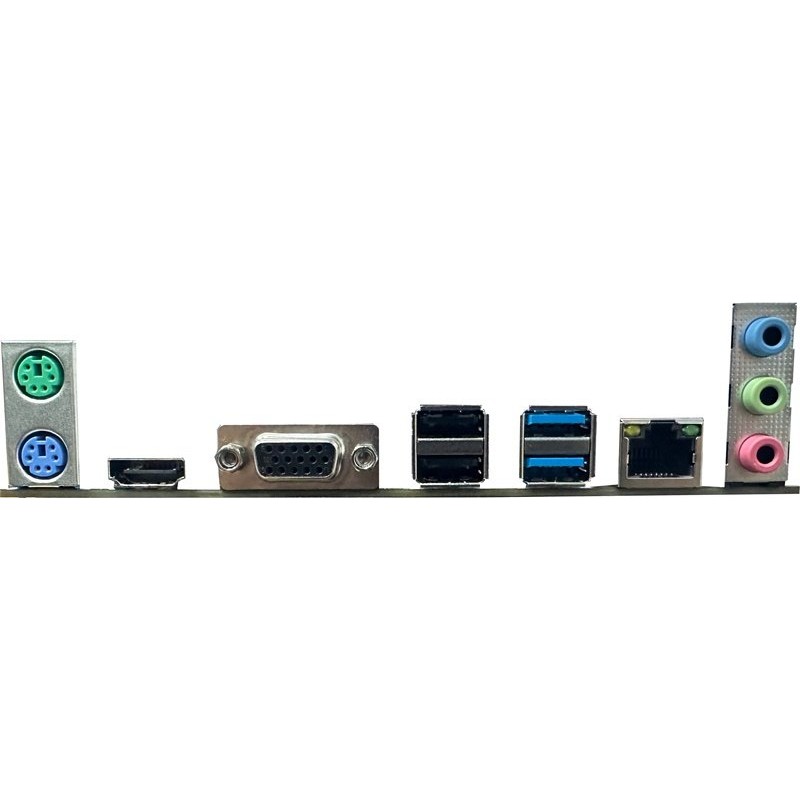

- Internal I/O:
2 x USB 2.0 header supports additional 3 USB 2.0 ports
1 x USB 3.0 header supports additional 2 USB 3.0 ports
1 x Front Panel Audio header - Expansion Slots: 1 x PCI Express x16 slot
- Form Factor: Micro-ATX (22 x 17 cm)
- OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
- Mounting: 4 mounting holes
